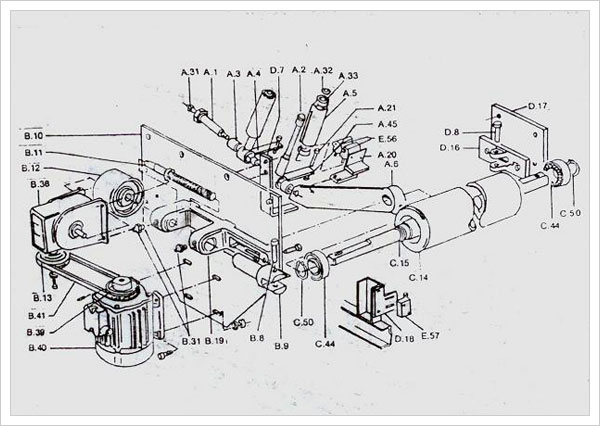

| Pos. No. on Drg. |
Part No. |
Description |
|
|
|
| A.31 |
4R 320451 |
Pin |
| A.2 |
4R 220060 |
Lever |
| A.3 |
4R 320452 |
Bush |
| A.4 |
4R 320453 |
Ring |
| A.5 |
5R 220061 |
Bush |
| A.6 |
3R 322018 |
Lever |
| A.20 |
3R 2074 SIL |
Support |
| |
3R 2135 SIL |
Support |
| A.21 |
4R 326494 |
Bolt |
| A.31 |
00.2653.045 |
Grease Nipple |
| A.32 |
00.0370.012 |
External Circlip |
| A.33 |
00.3431.748 |
Ball Bearing |
| A.45 |
- |
Nut |
| B.8 |
A 20216 |
Pin |
| B.9 |
4R 326868 |
Clamping Shaft |
| B.10 |
3R 2285 SIL |
Base Plate (R) |
| |
OR |
|
| |
3R 2015 SIL |
Base Plate (A2) |
| |
OR |
|
| |
3R 2395 SIL |
Base Plate (E2) |
| B.11 |
4R 326867 |
Shaft |
| B.12 |
B 8163 |
Coupling Assembly |
| B.13 |
4R 2021 SIL |
Belt Pulley |
| B.31 |
00.2653.045 |
Grease Nipple |
|
|
| Pos. No. on Drg. |
Part No. |
Description |
|
|
|
| A.38 |
09.0750.269 |
Reduction Gearbox |
| B.39 |
4R 2020 SIL |
Belt Pulley for |
| |
|
Motor |
| B.40 |
- |
A.C. Mootor |
| B.41 |
00.4165.158 |
'v'Belt |
| C.14 |
3R 12015 |
Roller |
| |
3R 228866 |
Roller |
| |
3R 228868 |
Roller |
| C.15 |
3R 12030 |
Shaft |
| |
3R 322052 |
Shaft |
| |
3R 322051 |
Shaft |
| C.44 |
00.03431.765 |
Ball Bearing |
| C.50 |
00.0370.030 |
External Circlip |
| D.7 |
4R 322019 |
Support |
| D.8 |
A 20216 |
Pin |
| D.16 |
B 12538 |
Bracket |
| D.17 |
4R 326882 |
Plate |
| D.18 |
4R 328311 |
Bracket for Limit |
| |
|
Switch |
| E.56 |
KIL 9431 - LH |
Blanket Guide Limit |
| |
|
Switches |
| E.57 |
LCW |
Blanket Safety |
| |
|
Limit Switches |
|
